4ms - Quad Clock Distributor Expander (Black)
Product information "4ms - Quad Clock Distributor Expander (Black)"

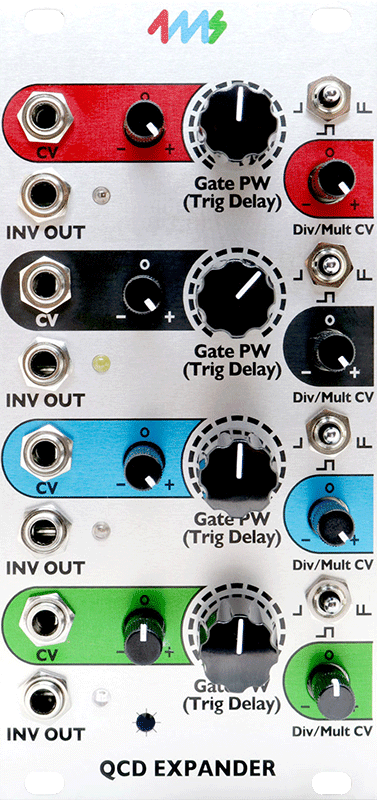

The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).
The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +5 V [mA]: | 65 |
|---|---|
| Current draw +12 V [mA]: | 44 |
| Current draw -12 V [mA]: | 30 |
| DIY Level: | Medium/Advanced |
| Depth [mm]: | 25 |
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
