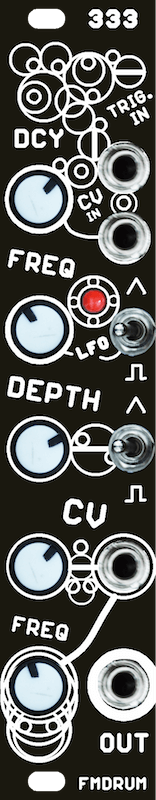

333modules - FM Drum
Product number:
100490
Product information "333modules - FM Drum"
Analog FM percussion generator. Selectable Triangle and Square waveform for both, Modulator and Carrier VCO’s Onboard VCA with CV controlled Decay envelope. Perfect for harsh sounds and timbres.
Features:
• CV for decay envelope and CV for modulation.
• VCO (triangle or square) modulated by LFO (triangle or square) and VCA whit decay (pot and CV)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• CV for decay envelope and CV for modulation.
• VCO (triangle or square) modulated by LFO (triangle or square) and VCA whit decay (pot and CV)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 29 |
|---|---|
| Current draw -12 V [mA]: | 27 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 26 |
| Width [HP]: | 5 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
